4 Inch Lens Kit MIRA
4 Inch Lens Kit MIRA
What you need
- 4" Lens Kit
- 2.5mm Allen Key
- 20.5mm Manual Focal Gauge
Need assistance?
Book time with a qualified technician and get help with Swapping Lenses.
Video
Steps
- Place a cloth or board under the laser head, resting on the blades. This will catch any bolts that may fall.

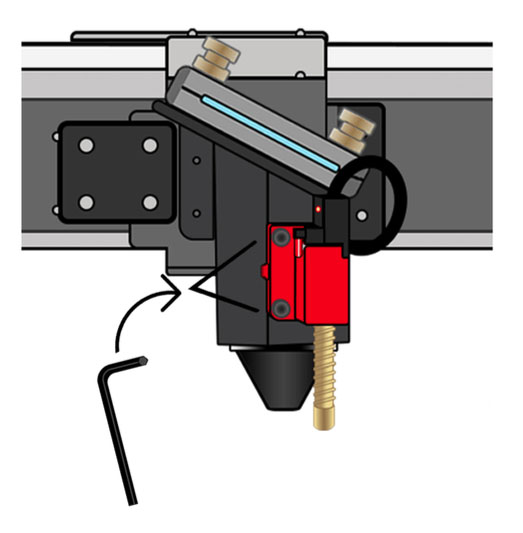

- Using a 2.5mm Allen key, remove the two bolts holding the autofocus assembly to the laser head, and let it hang out of the way.
2.5mm Allen key - Slide out the lens holder cartridge and store in a safe location.

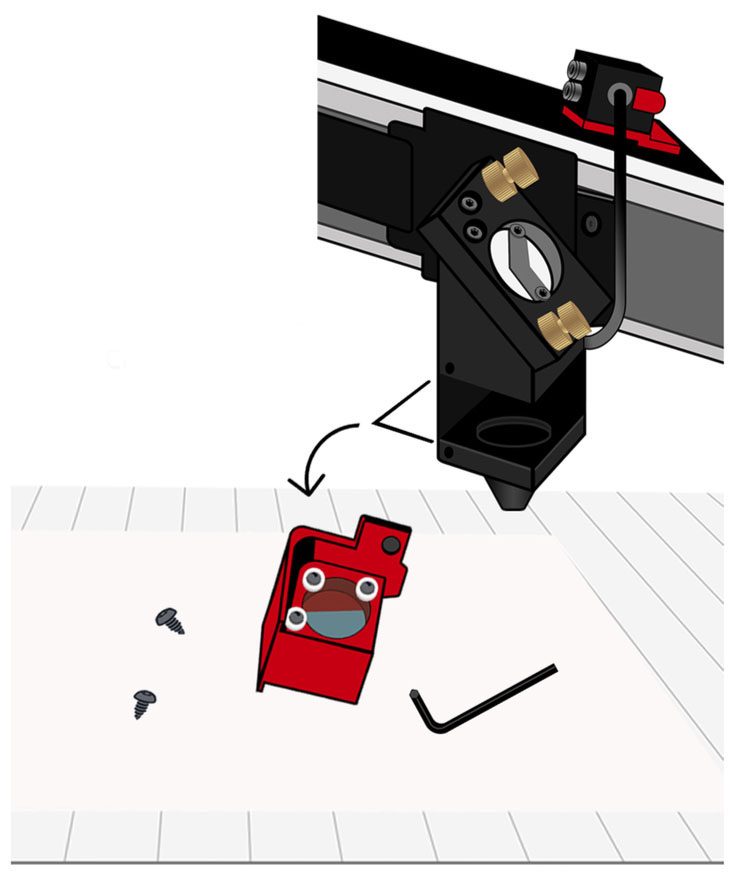

Lens holder cartridge, Allen key, two screws, on cloth - Unscrew the stock nosecone from the bottom of the laser head.

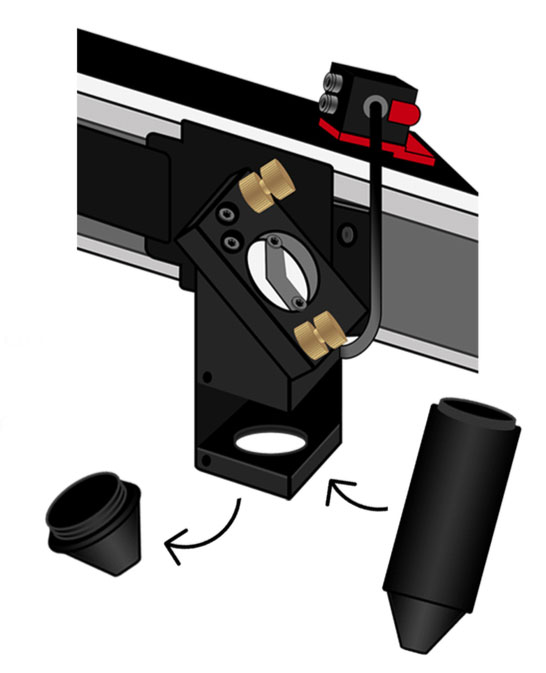

Stock nosecone (left), Extended nosecone (right) - Install the extended nosecone from the 4-inch lens kit, careful not to over tighten.
- Install the included lens holder cartridge with a pre-installed 4-inch lens.

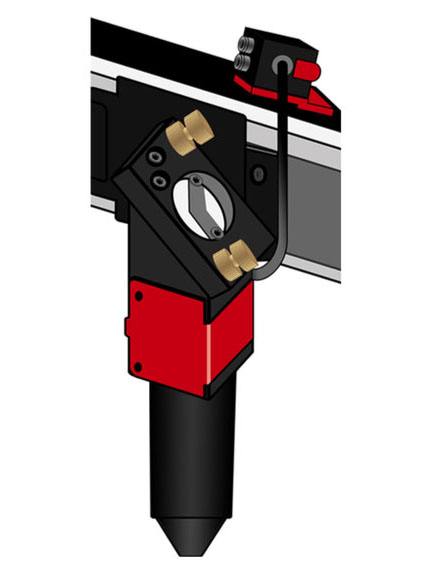

Extended nosecone and lens holder cartridge with a pre-installed 4-inch lens - Reinstall autofocus assembly with 2.5mm Allen key, be careful not to over tighten the bolts. Remember to route the cable safely out of the laser path.

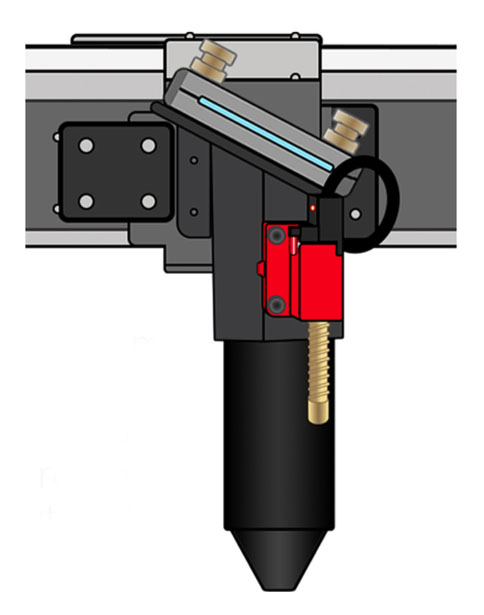

Autofocus assembly, reinstalled
⚠️CAUTION ⚠️ Do not attempt to autofocus machine with 4-inch lens kit installed. Use a focus gauge to manually set the focal distance to the material.
