Removing the Fan MIRA9
Removing the Fan MIRA9
What you need
- Phillips Screwdriver
- Cabinet Key
- Allen Key Set
Steps
☠️ WARNING ☠️ Turn OFF and unplug the machine before starting.
- Use the cabinet key to open the lower right panel on the back of the machine.

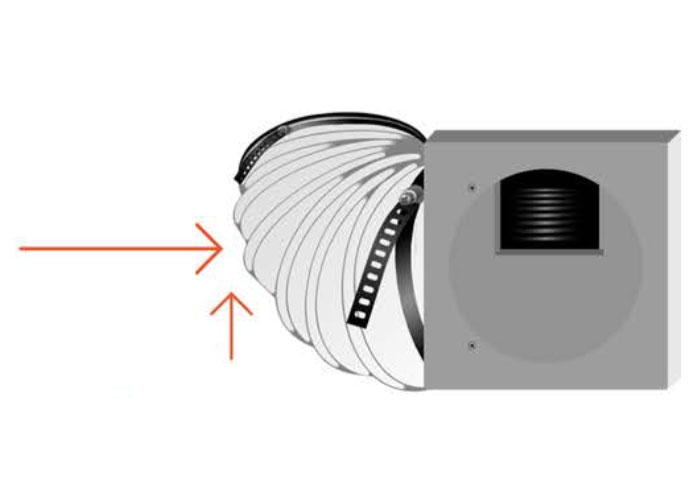

Rear of machine - With a Phillips head screwdriver, loosen the duct hose clamps and remove the hose from the fan and the back of the machine.

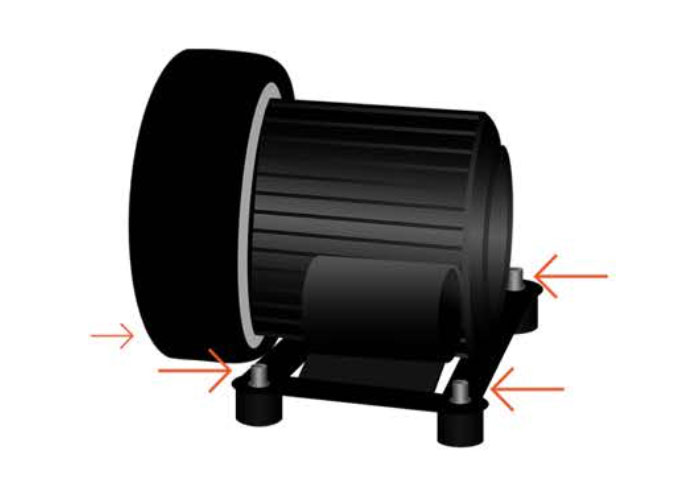

Duct hose clamps, hose - Unscrew the four bolts that hold the fan to cabinet floor.

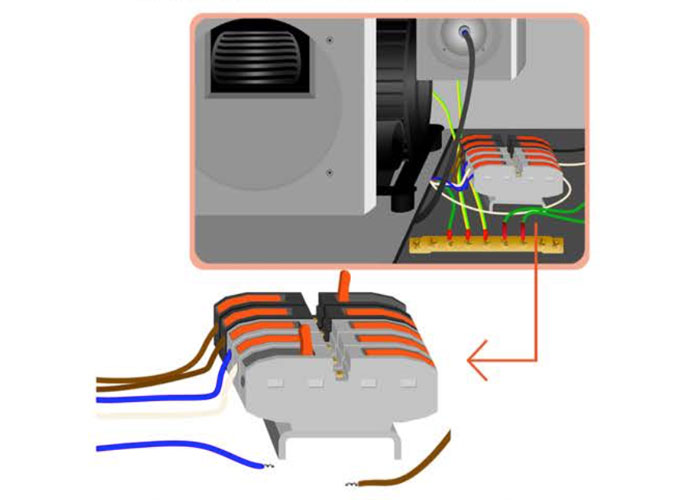

Fan bolted to cabinet floor - Follow the two wires marked "Fan" to the lever DIN connectors.

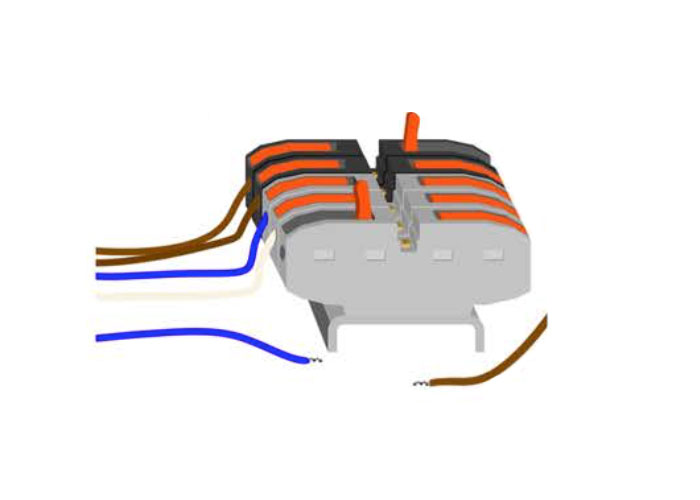

Lever DIN connectors Flip up the orange lever to release the wire and gently pull the wire out of the connector.

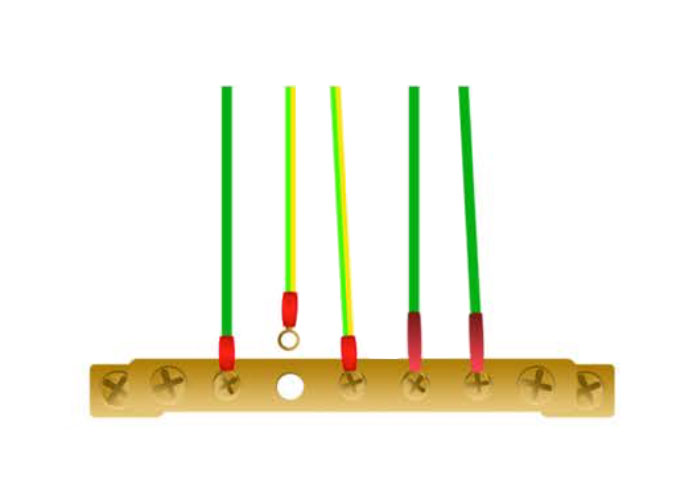

Lever DIN connectors - Follow the green and yellow ground wire from the fan to the ground bar. With a Phillips head screwdriver disconnect the ground wire from the ground bar.
Green and yellow ground wire, ground bar - Lift up the fan and remove it from the cabinet.

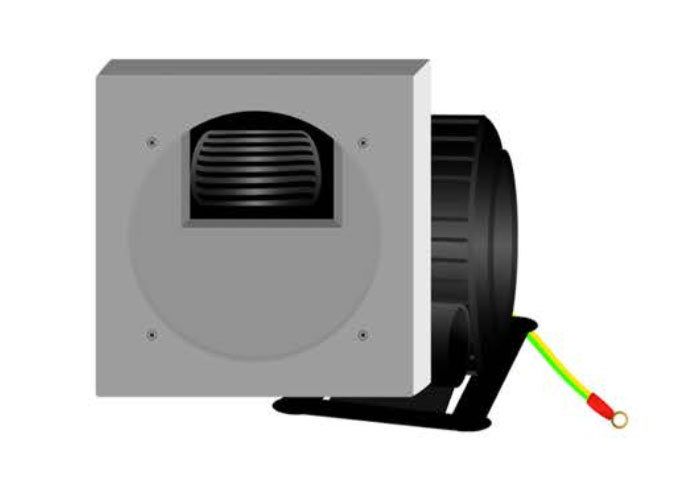

Fan
