Replace MIRA 24V Power Supply
Replace MIRA 24V Power Supply
☠️ WARNING ☠️ Turn OFF and UNPLUG the machine before starting.

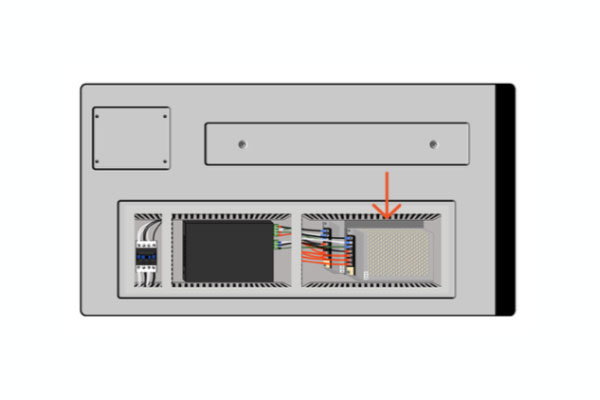

- Open the lower left side panel with the cabinet key, and locate the 24V power supply.

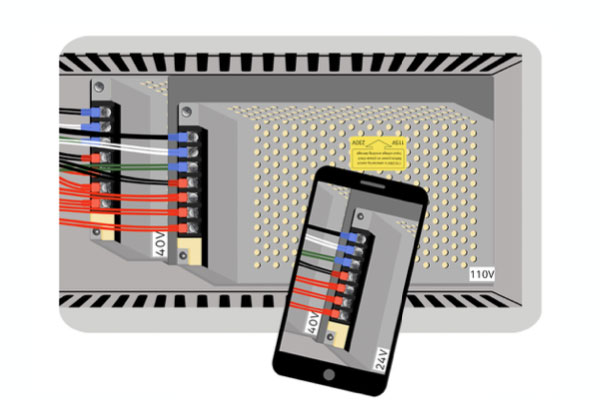

Side of machine - Take a picture of the wiring connections on the 24V power supply, to reference during reinstallation.

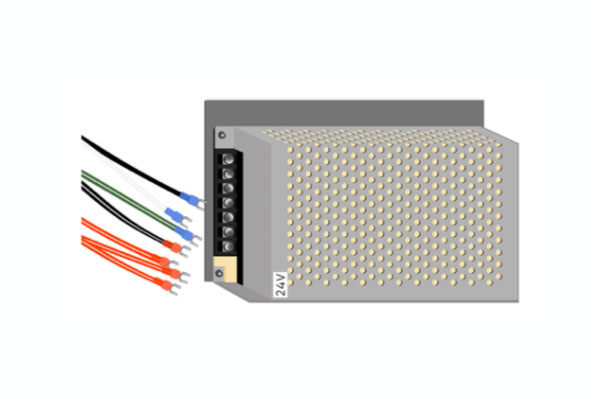

Phone camera - Use a phillips-head screwdriver to loosen wire terminals and remove wires.

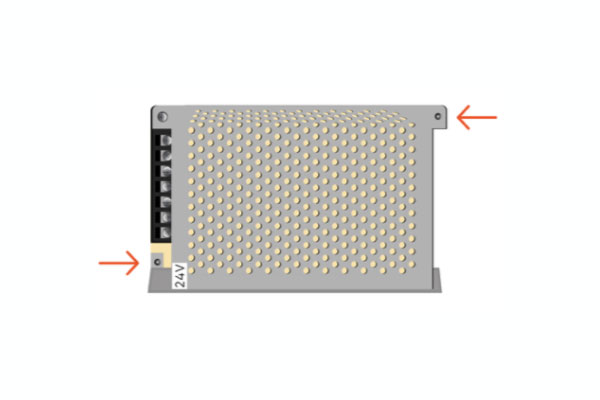

Power supply, wires - Use an Allen wrench to remove the mounting bolt in the lower left corner and the top right corner, and remove the unit.

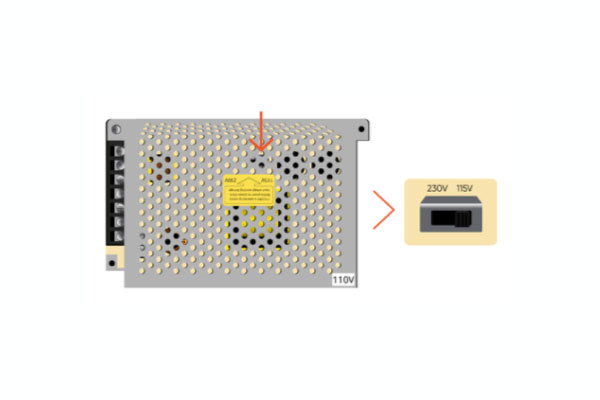

Power supply - Before installation of new unit, look through the grate to ensure that internal voltage switch is set to "115V".
Internal voltage switch - Use an Allen wrench to secure the mounting bolts in the lower left corner and the top right corner to mount the new unit.

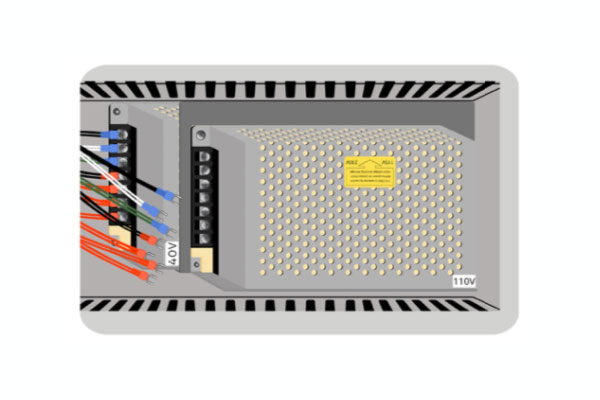

Power supply, mounted - Attach the wires to the new unit using the photo from Step 2 and a phillips-head screwdriver to tighten the screws at the wire terminals.
Phone, machine - Close the panel and secure in place with the cabinet key.
